Energy Portfolio
Inverter Battery Backup System
5KW Backup System

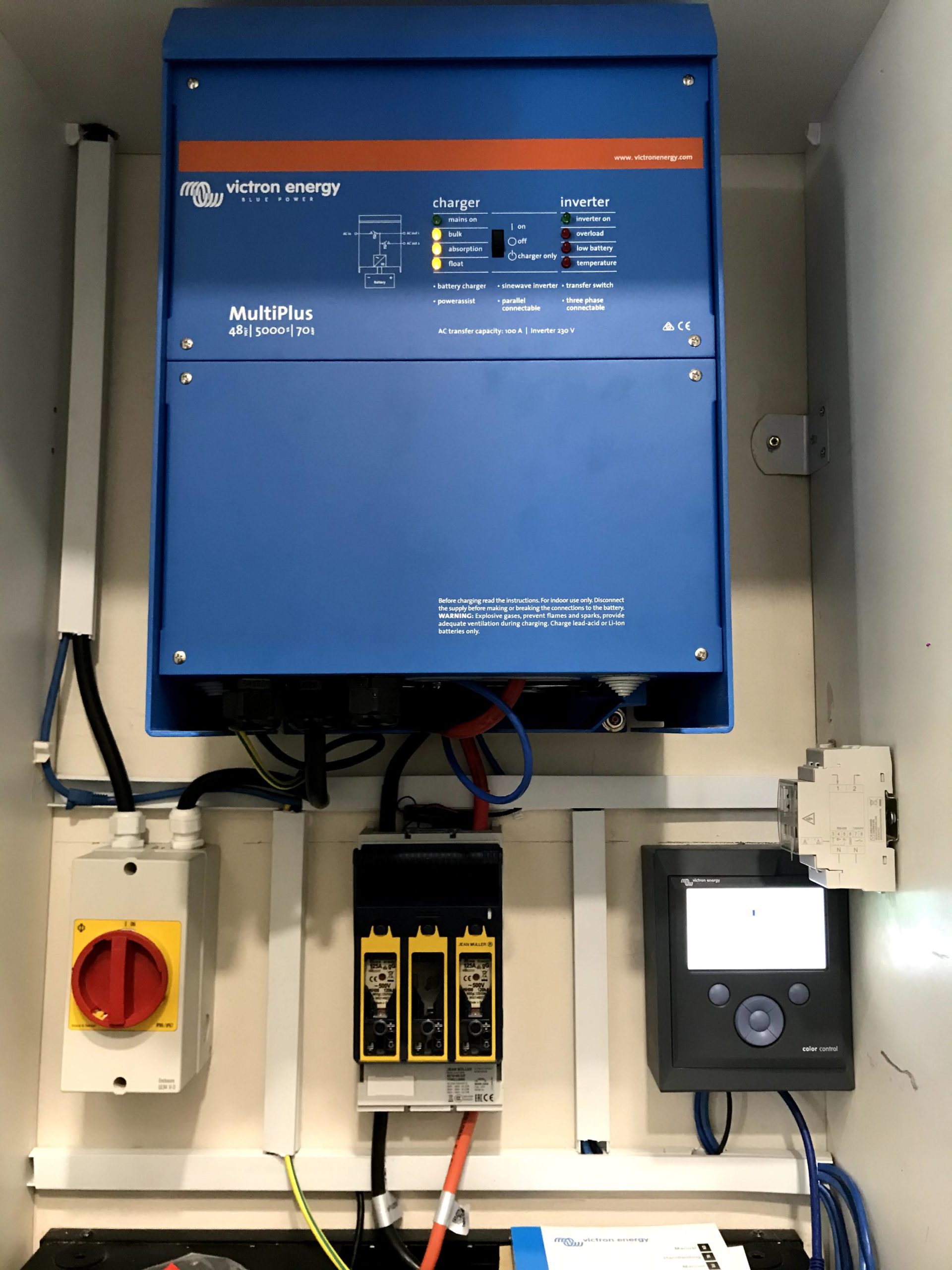

5KW Victron MultiPlus 48DC volt VE Bus sytem rated at a 100 amp ac input and a DC output of 70 amp gridtied to clients essentials.
Three PylonTech Lithiun-ion 2.4KWH batteries protected by 125A DC fuses.
The battery backup system is installed in a office with 7 employees that are working on desktop computers and laptops, as well as a small printer. There is a small kitchen with a kettle, fridge and microwave.
The system runs well past a load shedding period, approximately 4 hours.
Inverter Battery Backup System
5KW Backup System
Deye 5KW Hybrid Inverter with 2 PylonTech US3000 2.4KWH Lithium-ion Batteries, gridtied to client’s essential loads.
The client will add solar at a later stage to charge the battery bank.
The system has remote monitoring, usage and production can be viewed from anywhere in the world, on any device.
This 5500watt inverter has a MPPT input range of 125 – 425Vd.c and a max solar PV input of 6500watt. Battery voltage of 48Vd.c. Max of 25amps
The battery backup system is installed in a three bedroom home with three adults and two children. The system carries their entire household besides the stove and geyser.
The system has an automatic switchover from Eskom to the battery backpup system in miliseconds. The clients load is 3.5KW and runs well past a load shedding period approximately 3 hours.
Inverter Battery Backup System
5KW Battery Backup System

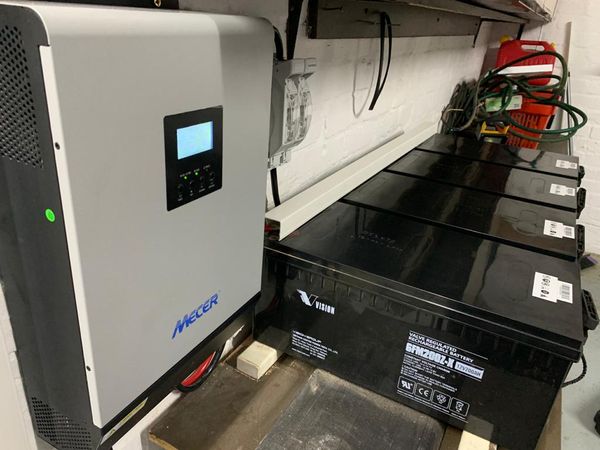

Mercer 5KW Inverter with 4 x 260A/H deep cycle batteries gridtied to client’s essential loads.
The battery backup system is installed in a four bedroom house with a pool house and flatlet. There are two occupants that work from home.
We converted all the lights to LED and the client has a smart and intello washing machine and fridge.
The system provides backup power to the entire household, besides the geyser.
The system has a automatic changeover from Eskom to the backup system in milliseconds. The clients total load is 3.6KW and the system carries the load for well past a load shedding period approximately 3.5 hours.

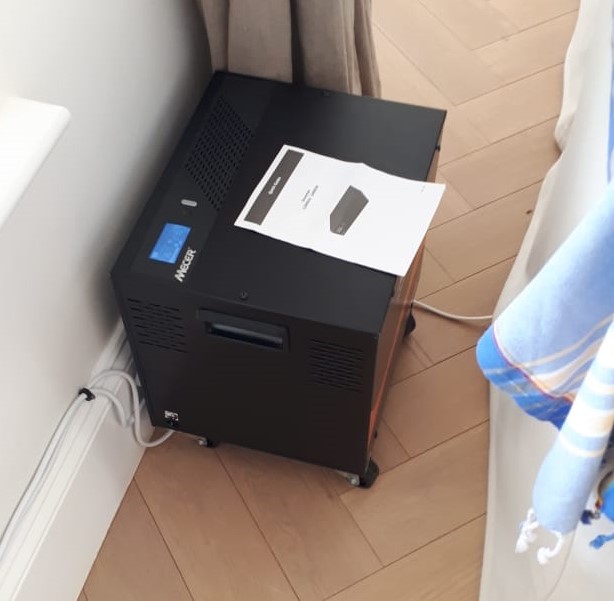

Portable Inverter Battery Backup System
720W Backup System
Mercer 720W Portable Inverter with 1 x 100AH deep cycle battery,
Plug and play, no installation required.
The 720 watt unit is installed as a battery backup unit in a guesthouse. The unit provides backup power to power to a WiFi modem, one lamp and a 32″ led television. The unit is compact and stands behind a couch in the lounge area, the unit plugs into a wall socket to keep the unit charged and an extension lead plugs into the unit and powers the above.
The unit powers the load during load shedding periods, approximately 3 hours.
Portable Inverter Battery Backup System
1.4KW Backup System
Mercer 1.4KW Portable Inverter with 2 x 100AH deep cycle batteries, gridtied to the distribution board.
The 1.4KW unit is installed as a battery backup unit in a small guesthouse apartment. The unit provides backup power to power to two room rights and a 32″ led television.
The unit powers the load during load shedding periods, approximately 3 hours.

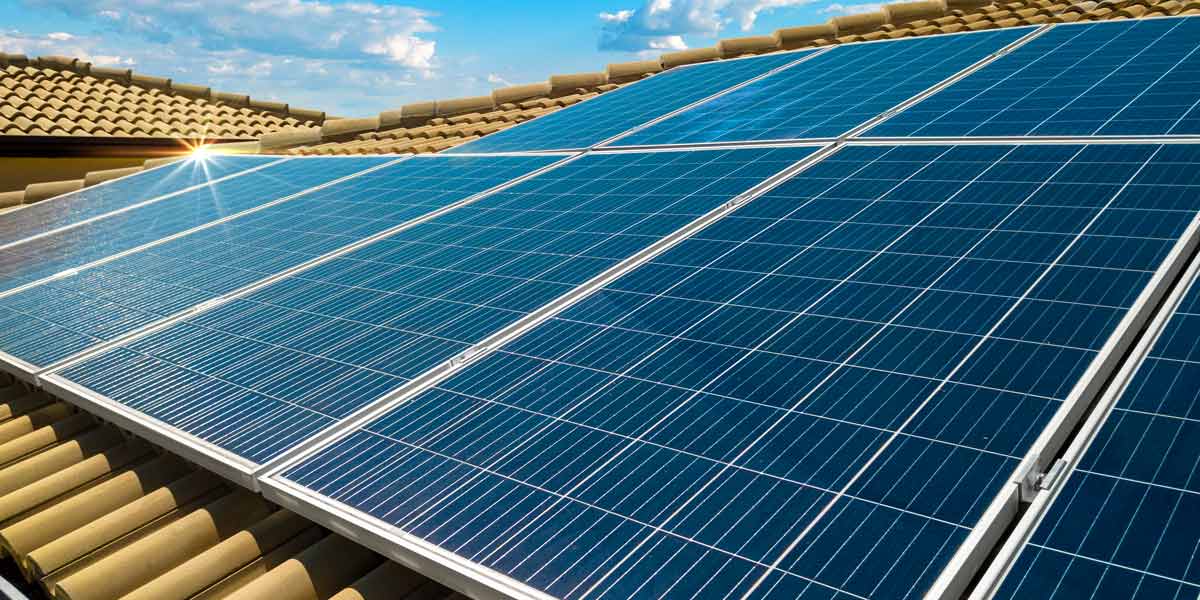

Solar System
5KW Solar Array
